Description

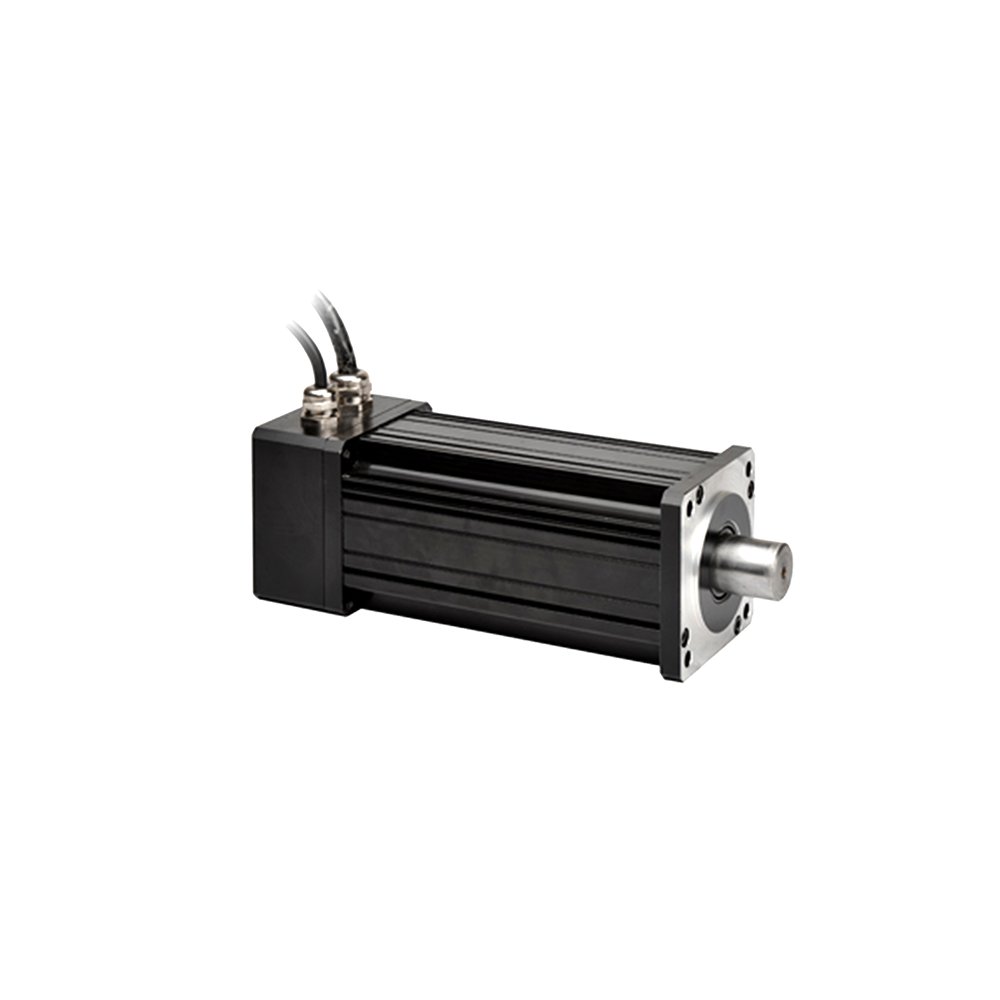

Our M077 Brushless DC Motor range has what you need. This lightweight unit comes in at ~3.6kg, with a diameter of 81.5mm and total length of 178mm. This unit can provide continuous power between 200 - 500W and up to 1kW on an intermittent basis within this frame size.
A popular choice for many industries and applications, these motors are perfectly suited for robotics, automated gates and doors, scooters, e-bikes, lifting machinery and even winches if selected with an IP65 rating.
Recommended Controller
KLS-S
You’re in control with our KLS Brushless DC Motor Controller
This sinusoidal controller is specifically designed for use with sinusoidal back emf motors, offering precise control over your electric motor's performance. The KLS Brushless DC Motor Controller provides the ability to control your motor’s speed and torque as well reversing the direction of the motor, setting your acceleration and deceleration requirements as well as assigning specific control parameters to fully customise the set-up of your controller.
M077B-4441
Looking for a compact BLDC Motor without compromising on performance?
M077B-4441
Brushless Motors
- 24 volt Brushless Motor
- 200W continuous rating
- 1500 rpm
Description
Our M077 Brushless DC Motor range has what you need. This lightweight unit comes in at ~3.6kg, with a diameter of 81.5mm and total length of 178mm. This unit can provide continuous power between 200 - 500W and up to 1kW on an intermittent basis within this frame size.
A popular choice for many industries and applications, these motors are perfectly suited for robotics, automated gates and doors, scooters, e-bikes, lifting machinery and even winches if selected with an IP65 rating.
Recommended Controller
KLS-S
You’re in control with our KLS Brushless DC Motor Controller
This sinusoidal controller is specifically designed for use with sinusoidal back emf motors, offering precise control over your electric motor's performance. The KLS Brushless DC Motor Controller provides the ability to control your motor’s speed and torque as well reversing the direction of the motor, setting your acceleration and deceleration requirements as well as assigning specific control parameters to fully customise the set-up of your controller.
Customised Solutions
Need a custom solution? All EMP design and development work is performed in-house, with proven capabilities in product development for our customers, which allows us to provide any range of products from 12v-415v, 50w to 50,000w, and all at your required speed.
