Description
With a rating of up to IP66 our range of M154 Brushless DC Motors are strong and durable, built to withstand the harshest outdoor environments both on sea and land. With a width of 167mm and standard length of 251mm (excl. shaft) means these units more compact than the systems they are commonly replacing.
The largest of our ‘off-the-shelf’ motors, these units can provide continuous power up to 5kW and then up to 15kW when sufficiently cooled and are suitable for larger, high-performance applications such as boat and marine conversions, as well as electric vehicles.
Recommended Controller
KLS-H
Take control with the KLS Brushless DC Motor Controller
This sinusoidal controller is specifically designed for use with sinusoidal back emf motors, offering precise control over your motor's performance. The KLS Brushless DC Motor Controller provides the capability to control and cap your speed, reverse the direction of the motor, set your acceleration and deceleration requirements along with assigning specific control parameters to a custom set-up of your controller. When it comes to programming your torque or speed modes, the KLS Controller provides all the necessary flexibility.

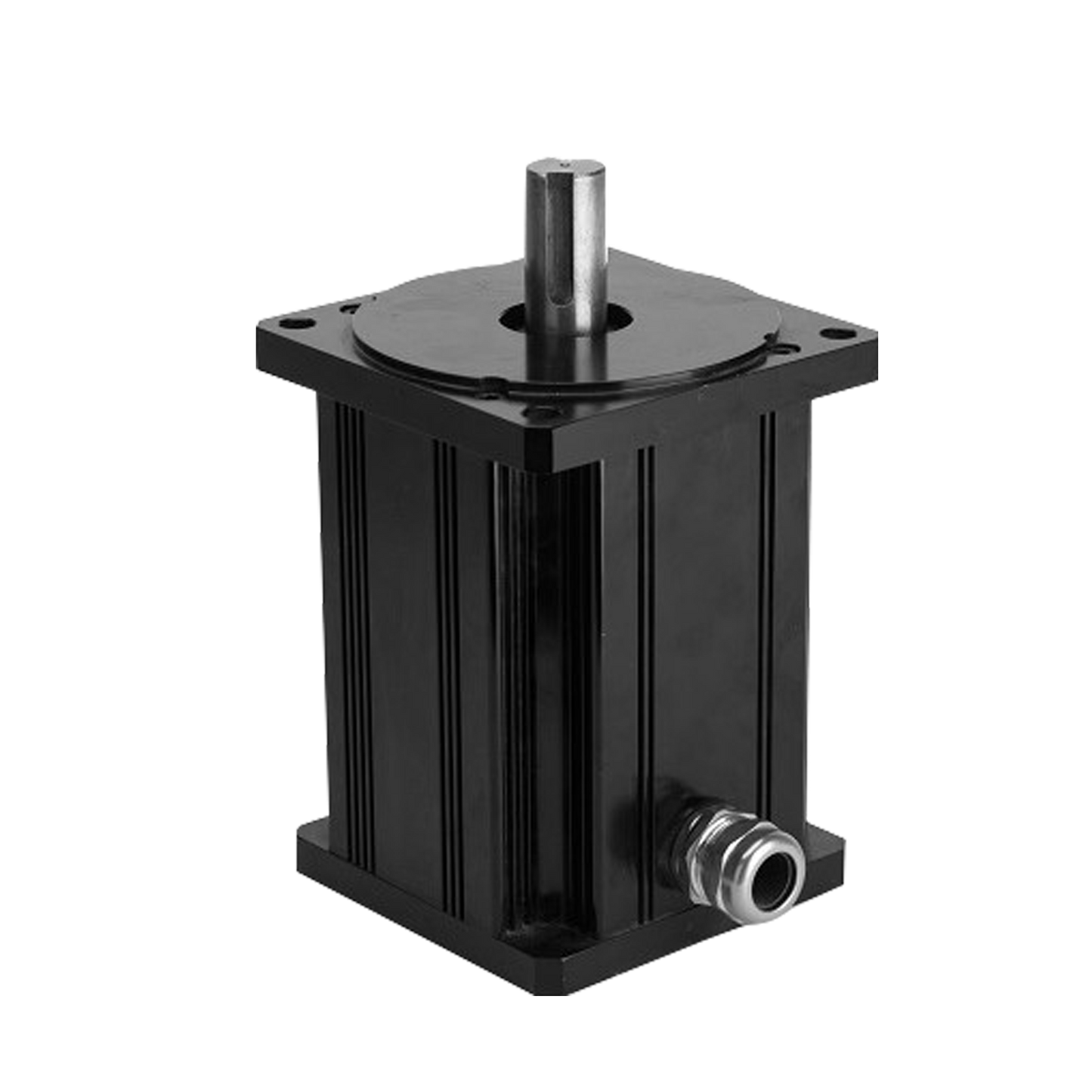

M154C-6618
Strength and durability - these BLDC motors are built for harsh conditions
M154C-6618
Brushless Motors
- 48 volt Brushless Motor
- 3000w continuous rating
- 2000 rpm
Description
With a rating of up to IP66 our range of M154 Brushless DC Motors are strong and durable, built to withstand the harshest outdoor environments both on sea and land. With a width of 167mm and standard length of 251mm (excl. shaft) means these units more compact than the systems they are commonly replacing.
The largest of our ‘off-the-shelf’ motors, these units can provide continuous power up to 5kW and then up to 15kW when sufficiently cooled and are suitable for larger, high-performance applications such as boat and marine conversions, as well as electric vehicles.
Recommended Controller
KLS-H
Take control with the KLS Brushless DC Motor Controller
This sinusoidal controller is specifically designed for use with sinusoidal back emf motors, offering precise control over your motor's performance. The KLS Brushless DC Motor Controller provides the capability to control and cap your speed, reverse the direction of the motor, set your acceleration and deceleration requirements along with assigning specific control parameters to a custom set-up of your controller. When it comes to programming your torque or speed modes, the KLS Controller provides all the necessary flexibility.
Request a quote
Customised Solutions
Need a custom solution? All EMP design and development work is performed in-house, with proven capabilities in product development for our customers, which allows us to provide any range of products from 12v-415v, 50w to 50,000w, and all at your required speed.
