Description

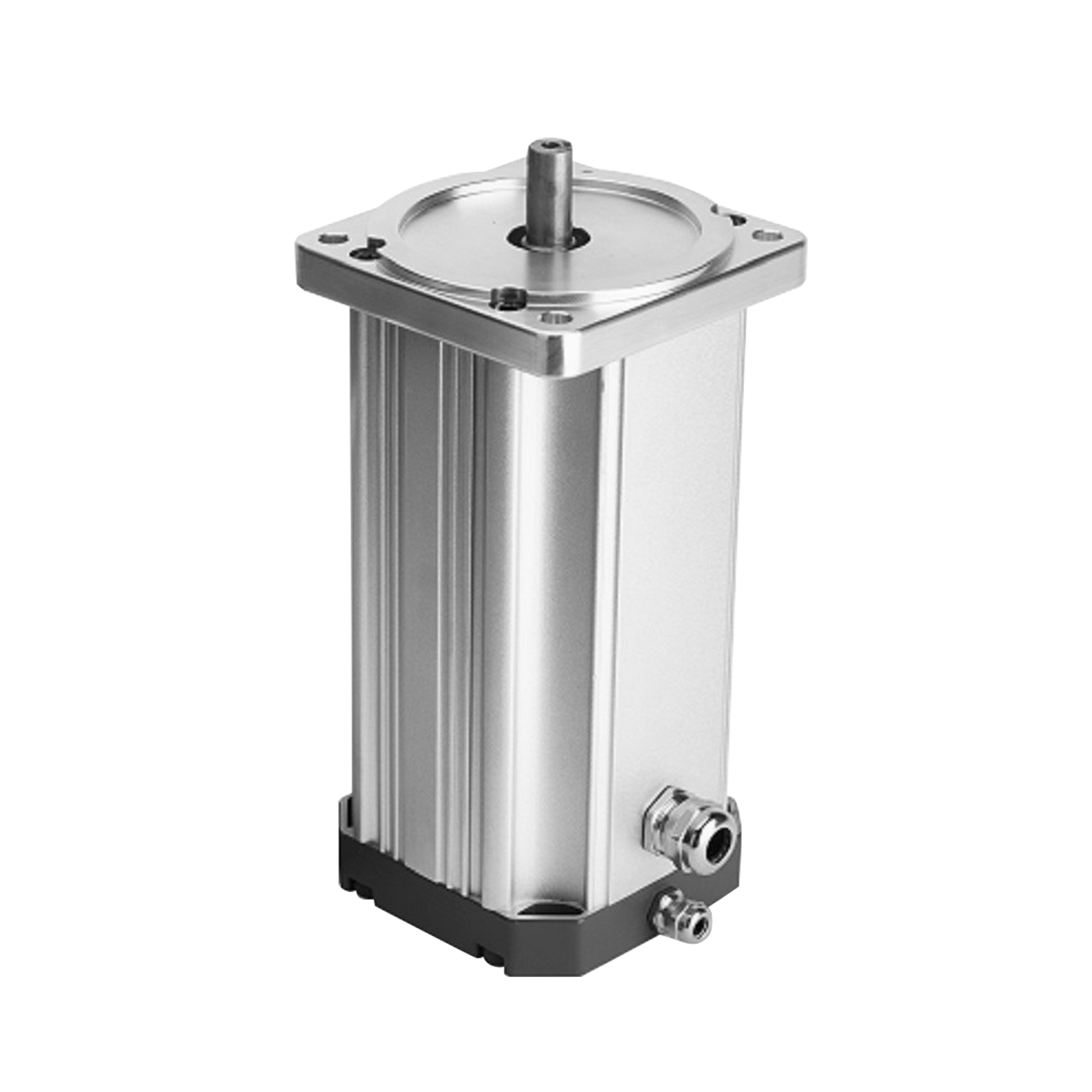

If you require a BLDC Motor that provides both flexibility and durability, our M123 range has a solution.
Used across a wide range of industries and applications from agriculture to processing and manufacturing equipment.
With a wide range of standard IEC configurations to choose from and an optimal power operating range of between 1kW – 2kW and up to 3kW for fan cooled or intermittent applications, it has a standard width of 132mm and total length of 190mm (excl. shaft).
Recommended Controller
KLS-S
Take control with the KLS Brushless DC Motor Controller
In order to operate, all BLDC motors require a suitable controller to perform the electronic commutation function. The KLS Brushless DC Motor Controller is a sinusoidal controller designed specifically for sinusoidal back emf motors. These customisable controllers provide the capability to control and cap your speed, reverse the direction of the motor, set your acceleration and deceleration requirements, and assign specific control parameters. The controller also provides the flexibility to program your motor’s speed and torque.
- 48 volt Brushless Motor
- 1000W continuous rating
- 2800 rpm
Description
If you require a BLDC Motor that provides both flexibility and durability, our M123 range has a solution.
Used across a wide range of industries and applications from agriculture to processing and manufacturing equipment.
With a wide range of standard IEC configurations to choose from and an optimal power operating range of between 1kW – 2kW and up to 3kW for fan cooled or intermittent applications, it has a standard width of 132mm and total length of 190mm (excl. shaft).
Recommended Controller
KLS-S
Take control with the KLS Brushless DC Motor Controller
In order to operate, all BLDC motors require a suitable controller to perform the electronic commutation function. The KLS Brushless DC Motor Controller is a sinusoidal controller designed specifically for sinusoidal back emf motors. These customisable controllers provide the capability to control and cap your speed, reverse the direction of the motor, set your acceleration and deceleration requirements, and assign specific control parameters. The controller also provides the flexibility to program your motor’s speed and torque.
Customised Solutions
Need a custom solution? All EMP design and development work is performed in-house, with proven capabilities in product development for our customers, which allows us to provide any range of products from 12v-415v, 50w to 50,000w, and all at your required speed.
